| Feature | KL7 | KL11 | KL14.5 | KL20 | KL25 | KL30 |
|---|---|---|---|---|---|---|
| Engine | Kioti | Kioti | Kioti | Kioti | Kioti | Kioti |
| Model | 3C100 | 3L123 | 3A165 | 3B183LWS | 4A220LWS | 4B243TLWS |
| Emission rating | EPA Tier 4 Final, Euro Stage V | EPA Tier 4 Final, Euro Stage V | EPA Tier 4 Final, | EPA Tier 4I | EPA Tier 4I | EPA T3 |
| Voltage Option 1 | 240V Single Phase | 240V Single Phase | 240V Single Phase | |||
| Voltage Option 2 | 208 V 3 Phase | 208 V 3 Phase | 208V 3 Phase | |||
| Standby Power (kWe) | 7kWe | 11kWe | 14.5kWe | 22 kWe | 25 kWe | 31 kWe |
| Prime Power (kWe) | 7kWe | 11kWe | 14.5kWe | 22 kWe | 25 kWe | 31 kWe |
| Weight | 873 lbs | 932 lbs | 1424 lbs | 1524 lbs | 1624 lbs | 1624 lbs |
| Dimensions (LxWxH) | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" | 59" x 32" x 45" |

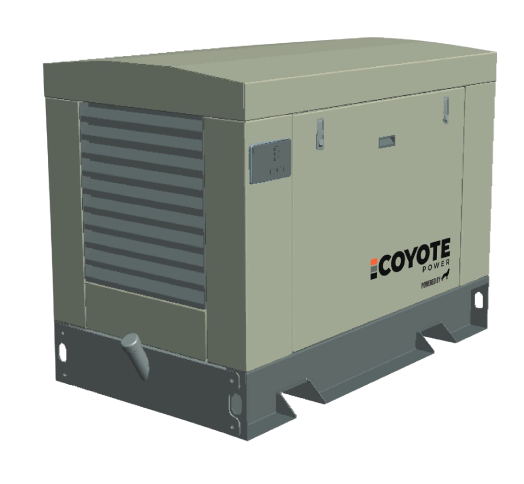

Generator
Introduction
COYOTE Generators are quality, optimum cost power generators.
Designed to cater to diverse applications, from industrial to residential use, these generators combine efficiency, durability, and advanced engineering to ensure uninterrupted power supply.
Product Range
- COYOTE Generators offers a versatile range of generators tailored to meet different power needs.
- The range includes models like (KL7), (KL11), (KL14.5), )KL20), (KL25) and (KL30), each engineered to deliver optimal performance in various environments.
Low cost of Operation:
- Mechanical engines
- Operates in tough heat and cold conditions
- Less sensitive to fuel quality
- Lower cost of maintenance
Easy Maintenance:
- Centralized access for service
- Oil drain extension
- Easy access fuel tank
High Durability:
- 14 Gauge enclosure
- Aluminium enclosure
- Kioti engine and Linz alternator
Emmisions:
- KL7, KL, 11KL14.5 - EPA Tier 4 Final /EU Stage V certified
- KL20, KL25 and KL30 - Tier 4 Interim certified
- No aftertreatment - No DEF, No DPF
Smart Design:
- Upgradable from single phase 240V to three phase 208 V with wiring switchover
- Upgradeable fuel tank from 45L to a larger 80L capacity, within the existing generator base frame
- Valve for a third party tank to be connected to the unit.
- Forklift lift holes
Safety Features:
- Lockable enclosure and controller door
- Lockable fuel cap
